Speaker Speaker Component

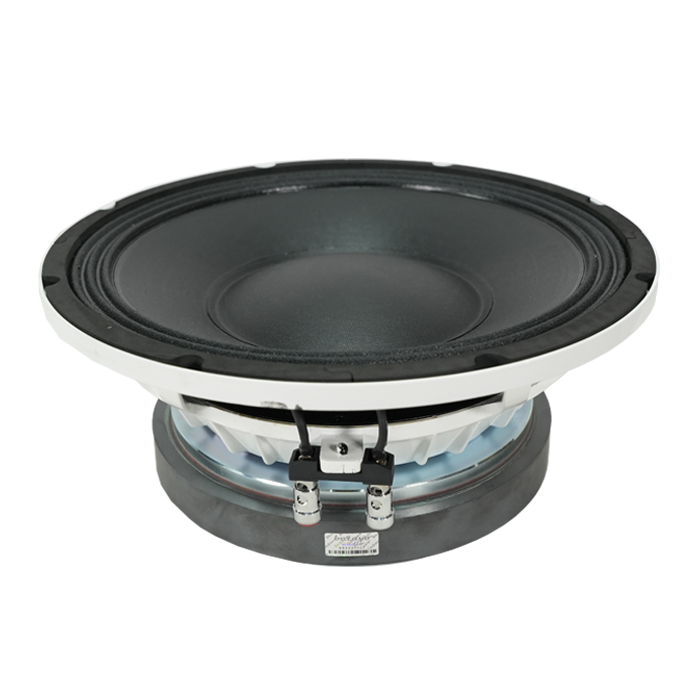

Betavo Audio Speaker Component 12 inch B12 V124
Rp 1,750,000 Rp 1,550,000 ( Disc 11% )
Specification
- Nominal Chassis Diameter 12/305 in/mm
- Maximal Power 1600 Watts
- RMS Power 800 Watts
- Impedance 8 ohm
- Resonance(natural) Frequency 60 Hz
- Frequency Response 60-3000 Hz
- Sensitivity(1 W/1 m) 96 dB
- Voice Coil Diameter 4"/100.8 mm
- Windling material PI (inside-outside)
- Magnet 125 Oz
Thiele Small Parameters
- FS Hz 60 Hz
- Vas 22 L
- RE Ohms 5.2 ohm
- Qms 4.5
- Qes 0.55
- Qts 0.54
- BL T/m 17.1 T/m
- MMS (grms) 86.5 grams
- Xmax (mm) 10.6 mm
- Sd 552 cm²
- Efficiency % 1.24%
- EBP 109
- Nett Weight 10.17 KG
- Gross Weight 11.76 KG
- Packing Size 36*36*22 CM
- Nominal Chassis Diameter 12/305 in/mm
- Maximal Power 1600 Watts
- RMS Power 800 Watts
- Impedance 8 ohm
- Resonance(natural) Frequency 60 Hz
- Frequency Response 60-3000 Hz
- Sensitivity(1 W/1 m) 96 dB
- Voice Coil Diameter 4"/100.8 mm
- Windling material PI (inside-outside)
- Magnet 125 Oz
Thiele Small Parameters
- FS Hz 60 Hz
- Vas 22 L
- RE Ohms 5.2 ohm
- Qms 4.5
- Qes 0.55
- Qts 0.54
- BL T/m 17.1 T/m
- MMS (grms) 86.5 grams
- Xmax (mm) 10.6 mm
- Sd 552 cm²
- Efficiency % 1.24%
- EBP 109
- Nett Weight 10.17 KG
- Gross Weight 11.76 KG
- Packing Size 36*36*22 CM
